Description
Typical Applications
- Filter centrifugal pumps are specifically designed for
swimming pool filtration systems. They are ideal for
transferring large volumes of water (up to 45°C) at low
pressure. - For optimal performance and protection, the pump
should be installed in a covered or enclosed area, away from
direct exposure to harsh weather conditions.
Operating Conditions
- Pumped Liquid: Thin, clean non-chemically aggressive liquid without solid particles or fibers
- Max. Fluid Temperature: +60°C
- Max. Ambient Temperature: -10°C – +40°C
- Insulation Class: F
- Enclosure Class: IP55
- Voltage:1x240V
Components
- Pump body
- Pump support
- Motor housing
- Impeller
- Motor Shaft
- Mechanical Seal
Motor
- Two-pole induction motor
- (n=2850 r.p.m) Insulation
- Class B Protection IP44
- Continuous service S1
- Thermal protector for single
phase
Technical Data
| MODEL | INLET/OUTLET | N.W | L x W x H |
| (INCH) | (kg) | (mm) | |
| SPL601 | 48.5 (50) X 48.5 (50) | 8.4 | 590 x 230 x 295 |
| SPL801 | 48.5 (50) X 48.5 (50) | 9.1 | 590 x 230 x 295 |
| SPL1101 | 48.5 (50) X 48.5 (50) | 10.7 | 590 x 230 x 295 |
|
Model
|
Motor |
Voltage
|
Current (A) |
m
|
m3/h
|
rpm
|
Inch
|
kg
|
mm
|
||
| kW | HP | In | Ist | ||||||||
| SPL 550 | 0.55 | 0.75 | 1~ 220-240 V | 4.4 | 20 | 10 | 12 | 2850 | 1 1/2″x1 1/2″ | 6.5 | 395x180x230 |
| SPL 750 | 0.75 | 1 | 1~ 220-240 V | 6 | 27 | 11 | 12 | 2850 | 1 1/2″x1 1/2″ | 7.5 | 395x180x230 |
| SPL 601 | 0.6 | 0.8 | 1~ 220-240 V | 4.8 | 22 | 9 | 15 | 2850 | 2″x2″ | 8.4 | 590x230x295 |
| SPL 801 | 0.8 | 1.1 | 1~ 220-240 V | 6.4 | 29 | 12 | 18 | 2850 | 2″x2″ | 9.1 | 590x230x295 |

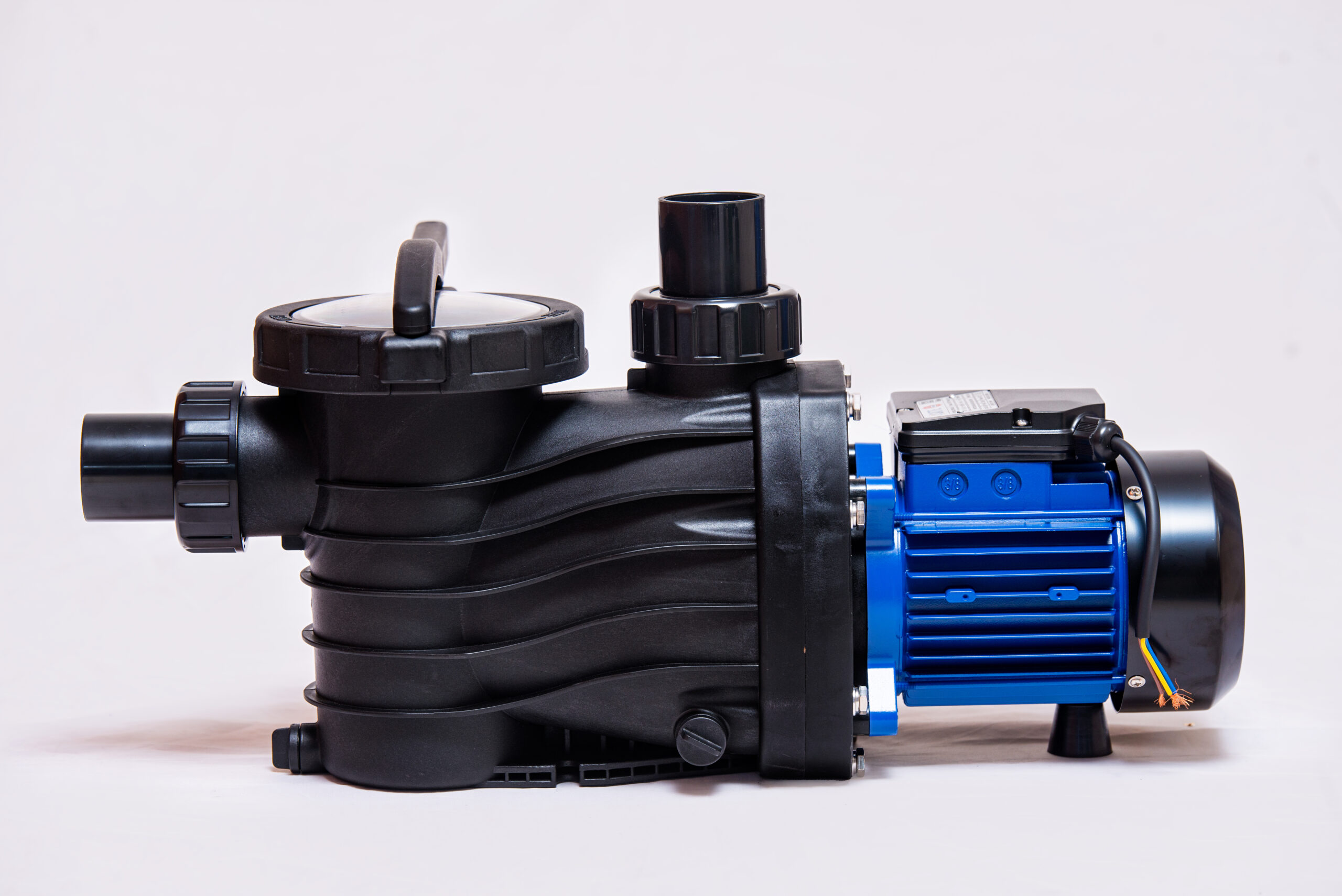

| SPL 1101 | 1.1 | 1.5 | 1~ 220-240 V | 8.9 | 40 | 16 | 18 | 2850 | 2″x2″ | 10.7 | 590x230x295 |
