Description
Typical Applications

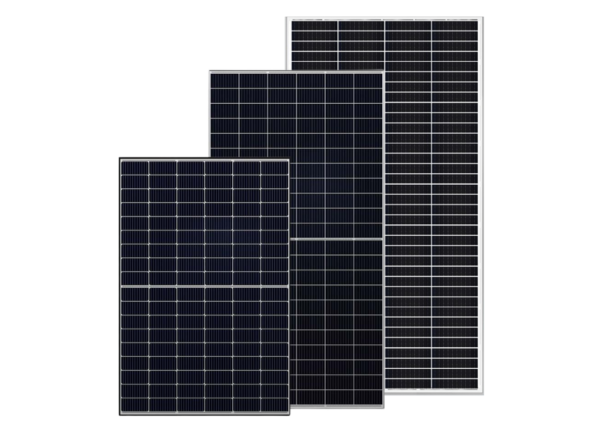

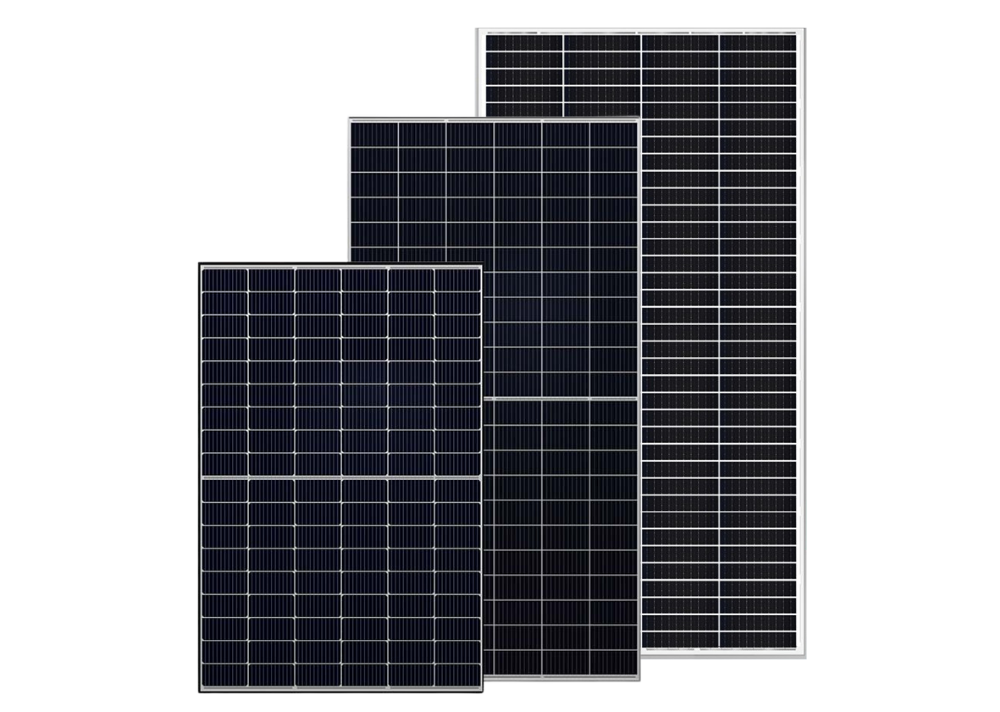

- Satte PV Modules are designed for efficiency and reliability, sourced from top global manufacturers with high standards. Key
features include: - High-efficiency Mono/Poly crystalline cells with over 15% energy conversion, even at low light levels.
- Tempered glass with anti-reflective coating for enhanced power output and strength.
- Waterproof junction box for easy connections.
- 25-year power output warranty.
- Certified by TUV Rheinland to ISO, CE, and IEC standards.
These modules ensure consistent quality and are ideal for all solar applications with dependable, long-lasting performance.
Operating Conditions
- Operating Cell Temperature: 46±2°C
- Temp Coefficient Pmax: -0.45%/°C
- Temp Coefficient Voc: -0.37%/°C
- Temp Coefficient Isc: 0.06%/°C
Mechanical Specifications
Solar Cells P-Mono-210*105mm Arrangement Type-3*11 Front Glass
3.2mm tempered glass Backsheet Fluoride on both sides Frame
Anodized aluminium alloy Junction Box IP67, 2 diode Cables 4.0mm²
photovoltaic cables Connectors MC4 compatible/IP67
Technical Data
| Model | Peak Power(Pmax) ±3% (W) | Power Tolerance (W) | Max.Power Voltage(Vmp) (V) | Max.Power Current(lmp) (A) | Open-circuit Voltage(Voc) ±3% (V) | Operating Temperature (℃) | Max. Series Fuse Rating (A) | Max. System Voltage(DC) (V) | Short Circuit Current (A) |
Dimensions (mm) H
|
Weight (kg) | ||
| L | H | W | |||||||||||
| 280W | 280 |
0~+5
|
31.86 | 8.79 | 37.86 |
-40~+85
|
15 | 1000 | 1535(±2) | *880(±2) |
30
|
13.5 | |
| 340W | 240 | 38.55 | 8.82 | 45.64 | 1000 | 8.8 | 1856(±2) | *880(±2) | 17.6 | ||||
| 450W LV | 450 | 34.62 | 13.01 | 41.46 | 25 | 1000 | 13.47 |
1903(±2)
|
1134(±2)
|
23.6
|
|||
| 450W HV | 450 | 68.92 | 6.53 | 82.85 | 12 | 1000 | 7.08 | ||||||
| 125W HV | 125 | 28.22 | 4.43 | 33.29 | 15 | 1000 | 4.68 | 800 | 770 | 6.47 | |||
| 125W LV | 125 | 20.13 | 6.21 | 24.48 | 15 | 1000 | 6.46 | 800 | 765 | 7.2 | |||
| 600W | 600 | 44.31 | 13.54 | 52.52 | 30 | 1500(IEC) | 14.12 | 2278(±2) | 1134(±2) | 30 | 30.6(±3) |
