Description

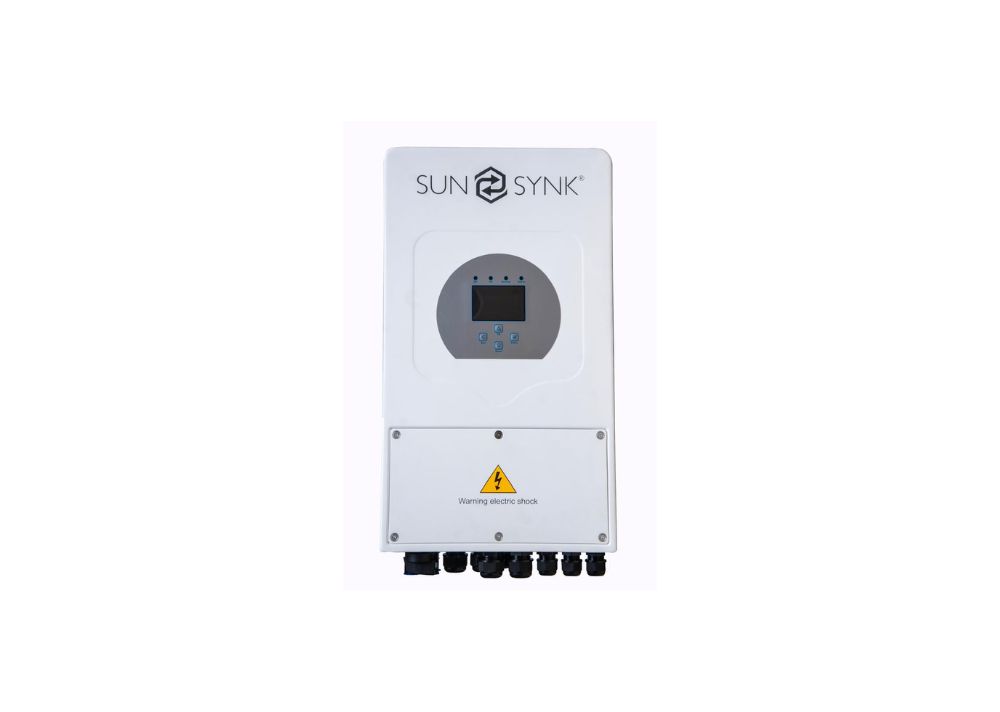

The Sunsynk Hybrid Inverter combines advanced features of a solar inverter, battery charger, and grid connection technology into one efficient
system. Designed for single-phase systems, this multifunctional inverter supports both on-grid and off-grid operations, ensuring uninterrupted
power supply. Its user-friendly LCD interface allows for customizable settings, including battery management, grid connectivity, and energy
prioritization. With high efficiency (up to 97.6%) and robust protection mechanisms against overvoltage and short circuits, it is a reliable solution for
sustainable energy management in diverse applications.
Typical Applications
- Residential Power Backup: Provides uninterrupted power during outages, supporting home appliances like refrigerators, lighting, and air
conditioners. - Commercial Applications: Powers office and factory equipment while optimizing energy use between solar, battery, and grid.
- Remote Locations: Ideal for areas with limited access to electricity, pairing with solar and wind systems.
- Marine Vessels: Supports onboard power systems efficiently.
Telecommunication Systems: Ensures consistent energy supply for critical communication infrastructure. - Military Installations: Provides a secure and portable energy solution for off-grid operations.
Construction Sites: Supplies reliable power for tools and temporary facilities in remote locations.
Key Features - High Efficiency: Maximum efficiency of 97.6% and MPPT efficiency greater than 99%.
- Battery Compatibility: Supports both lead-acid and lithium-ion batteries. Customizable battery voltage range (48Vd.c, 40V-60Vd.c).
- Multi-MPP Trackers: Equipped with dual MPPTs for optimal solar power harvesting.
- Flexible Power Management: Can operate in on-grid, off-grid, or hybrid modes. Programmable priority for solar, battery, or grid usage.
- Robust Protection: Features overvoltage, short-circuit, and lightning protection. IP65-rated enclosure for outdoor installations.
- Advanced Monitoring: Comprehensive LCD display with real-time system data. Compatible with Wi-Fi or GSM for remote monitoring.
- Seamless Integration: Works with generators, solar panels, and wind turbines.
Technical Data
| Specification | Battery Type |
Battery Voltage Range |
Max. Charging/Disc harging Current |
Max. DC Input Power |
PV Input Voltage |
No. of MPPT Trackers |
Rated AC Output Power |
Max. AC Output Power |
AC Output Rated Current |
Output Voltage |
Max. Efficiency |
MPPT Efficiency |
Operating Temperature Range |
Protection Degree |
| SUNSYNK- 3.6K- SG03LP1 |
Lead- acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
90Ad.c | 4680W | 370V (125V~50 0V |
2 | 3600W | 3960W | 16.4/15.7 Aa.c |
220/230V ac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
IP65 |
| SUNSYNK- 5K-SG03LP1 |
Lead- acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
120Ad.c | 6500W | 370V (125V~50 0V) |
2 | 5000W | 5500W | 22.7/21.7 Aa.c |
220/230V ac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
IP65 |
| SUNSYNK-8K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
160Ad.c | 10400W | 370V (125V~500V |
2 | 8000W | 8800W | 35.4/33.9Aa. c |
220/230Vac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
|
| SUNSYNK-10K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
180Ad.c | 13000W | 370V (125V~500V |
2 | 10000W | 11000W | 44.4/42.5Aa. c |
220/230Vac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
|
| SUNSYNK-12K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
200Ad.c | 15600W | 370V (125V~500V |
2 | 12000W | 13200W | 53.3/50.9Aa. c |
220/230Vac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
|
| SUNSYNK-16K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
240Ad.c | 20800W | 370V (125V~500V |
2 | 16000W | 17600W | 71.1/67.8Aa. c |
220/230Vac (single phase) |
97.60% | >99% | -40~60°C (>45°C derating) |
